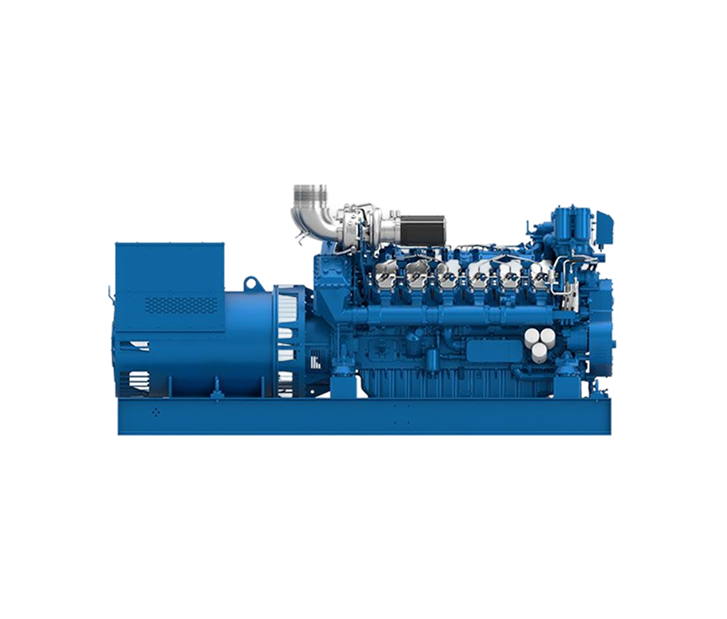

Engine View 1

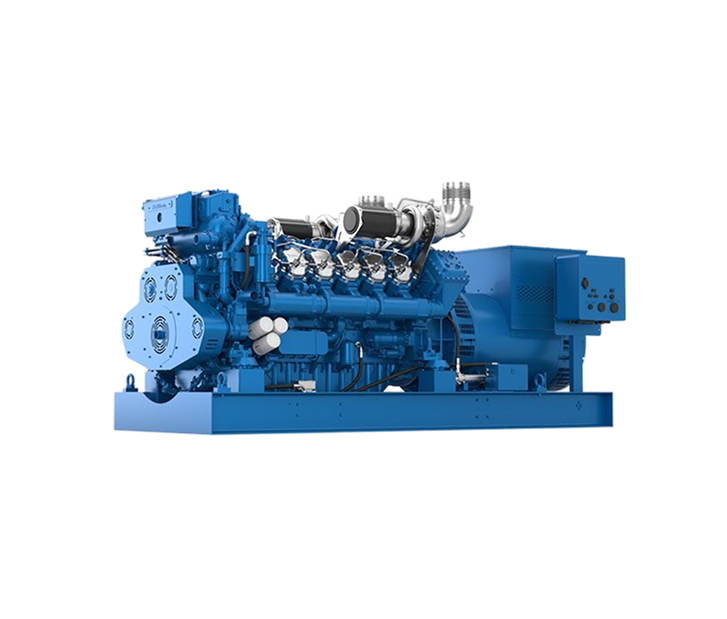

Engine View 2

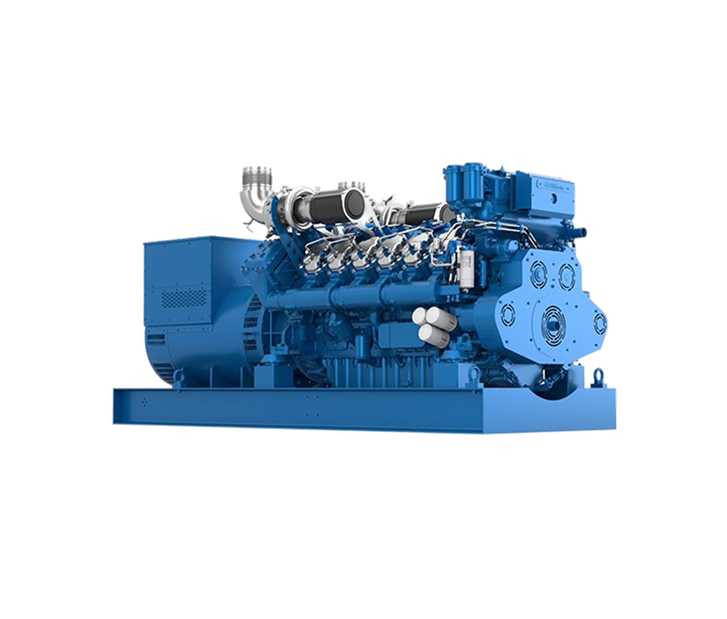

Engine View 3

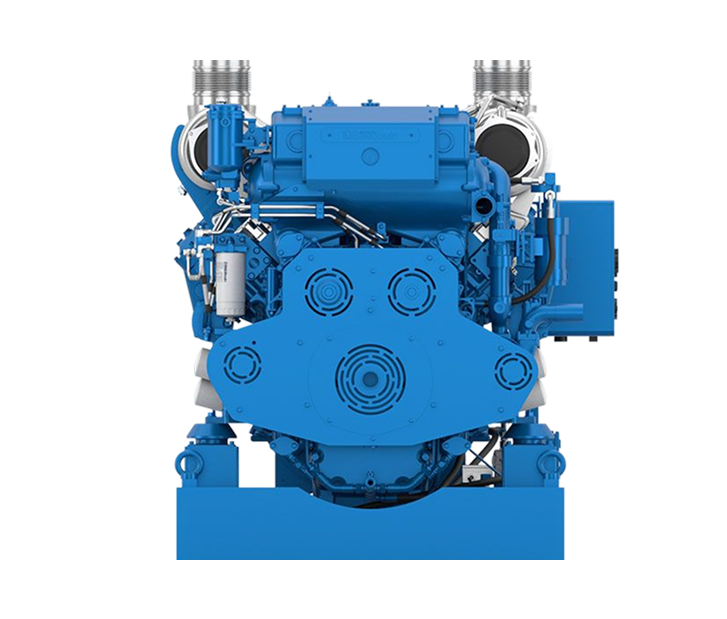

Engine View 4

12M33G1500/5

The 12M33G1500/5 is a high-performance dg engine engineered for heavy-duty, continuous-service power generation, delivering high torque, robust output, and superior fuel savings across a wide range of operating conditions. Sourced from a trusted diesel generator engine supplier in India, it meets stringent environmental emission benchmarks. It is ideally configured for manufacturing facilities, large greenhouses, and cogeneration projects, prioritizing rugged reliability, operational flexibility, and an extended life cycle.

ENGINE DATA

Speed (RPM)1500
Bore x Stroke (mm)150 X 185
Displacement (L)39.2
No. of Cylinders12 – Vee
Compression Ratio15.1
Total Lube Oil Capacity (L)160
Injection Pump TypeMechanical
Starting System Voltage24V DC
Dimensions (L x B x H) mm3525 x 2241 x 2243
Weight (kg)4575
