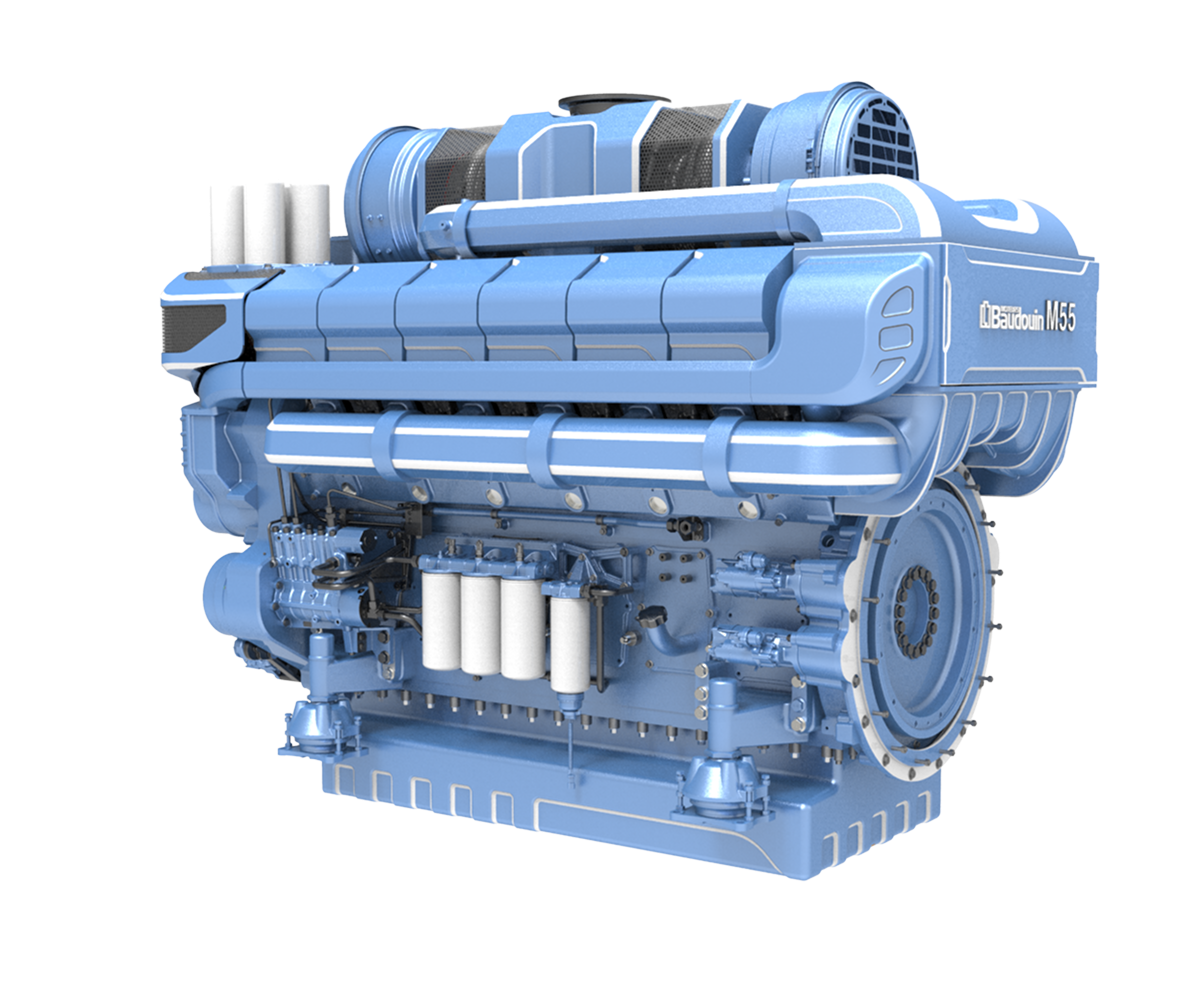

Engine View 1

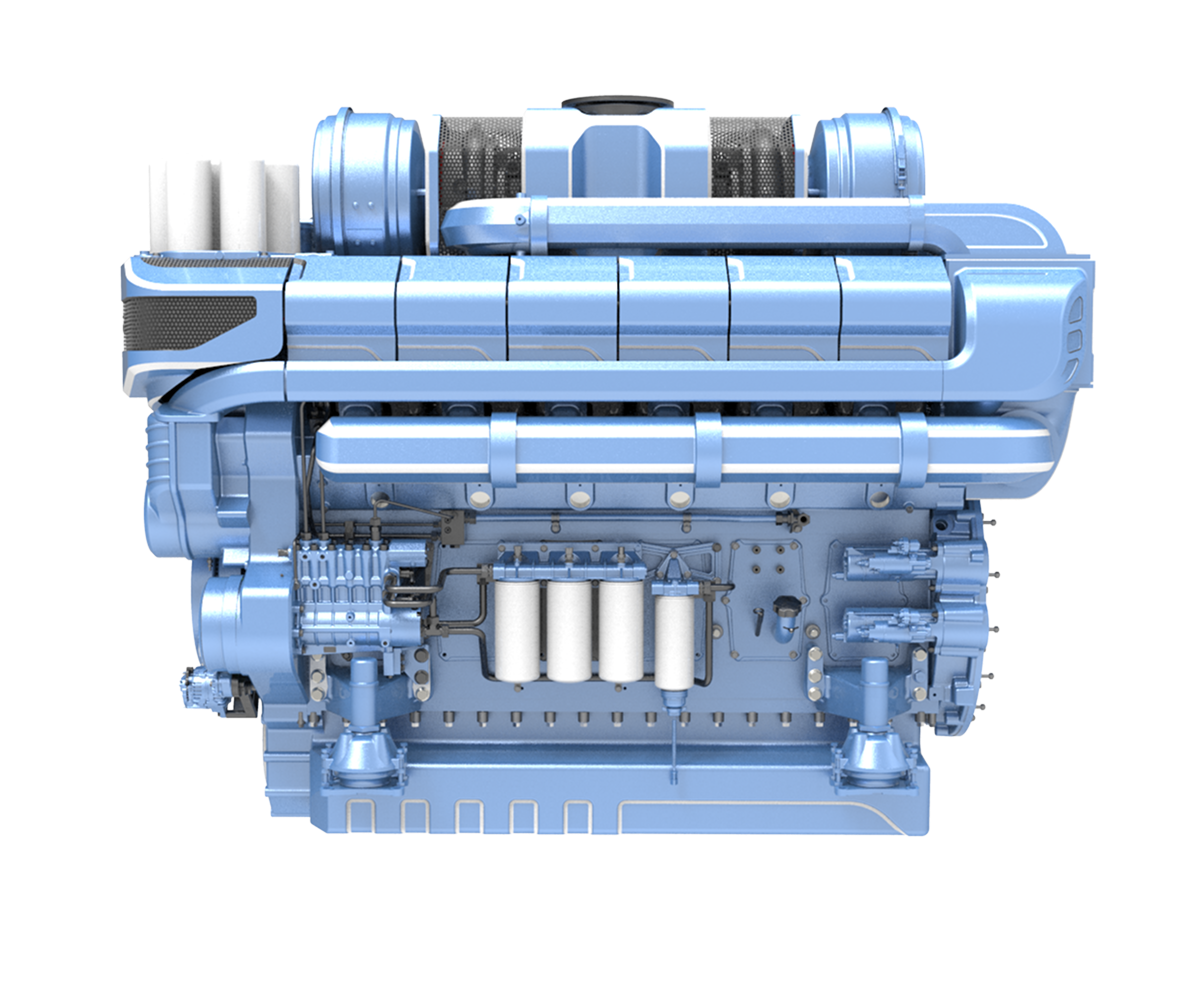

Engine View 2

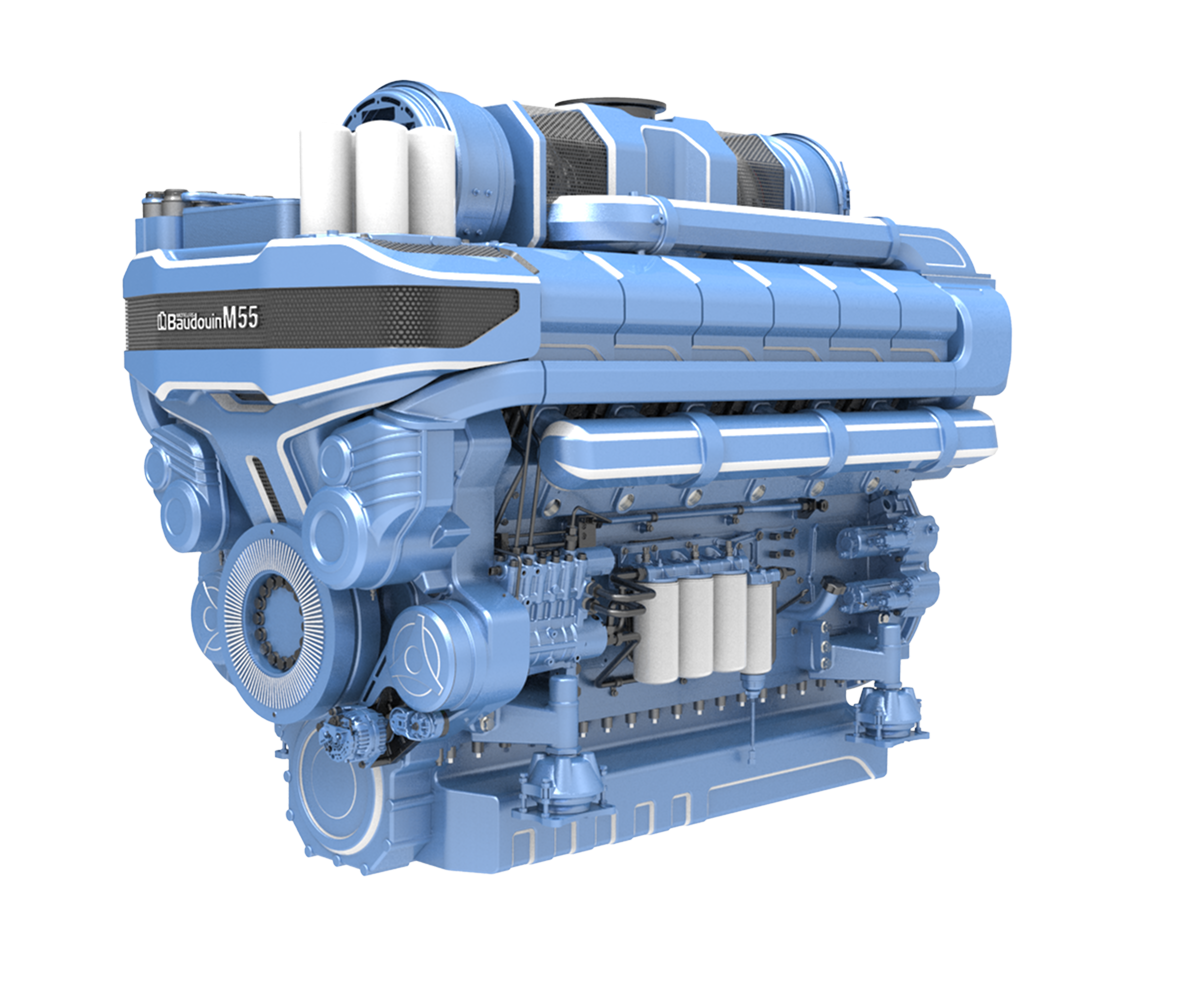

Engine View 3

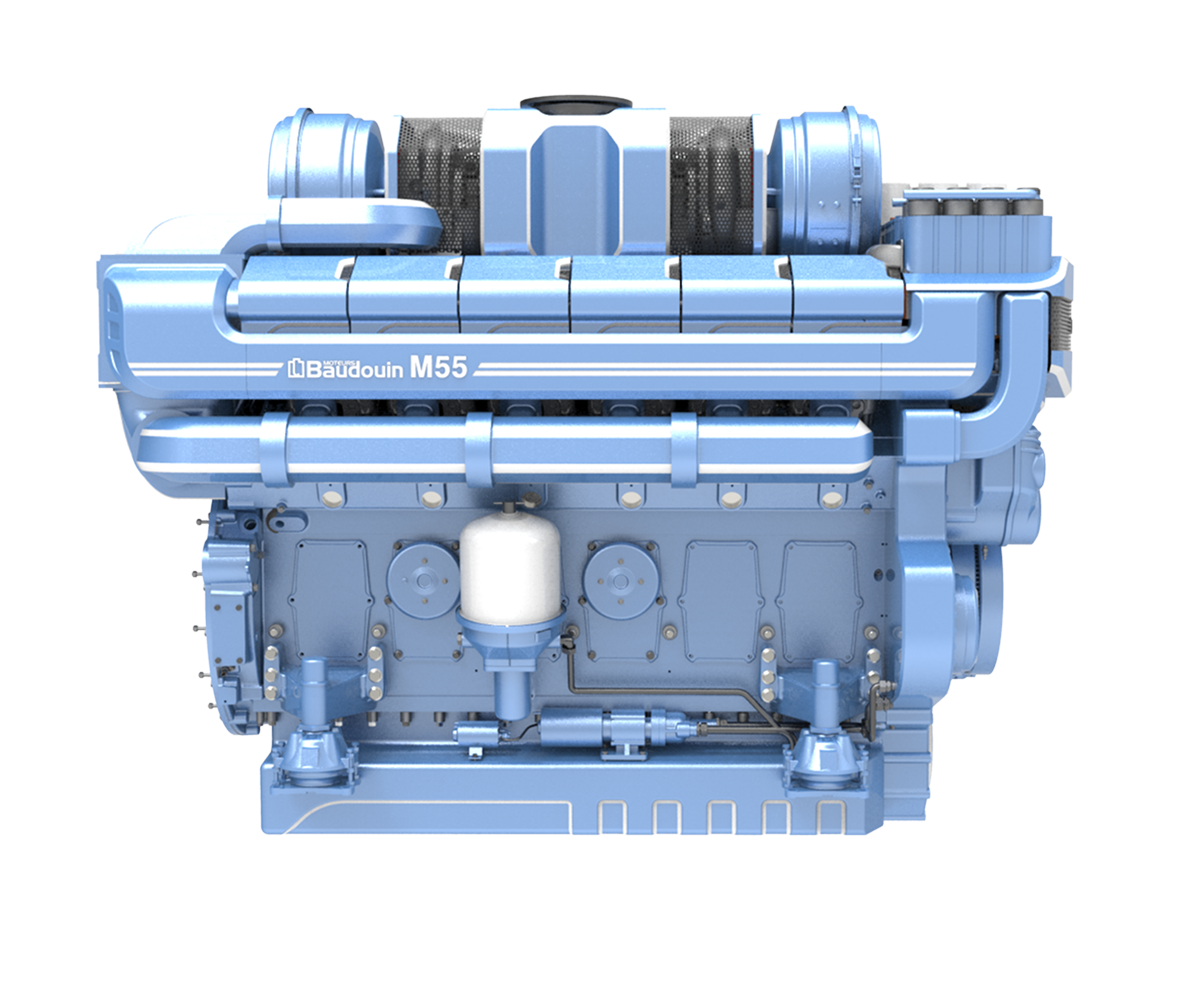

Engine View 4

12M55G3000/5

The 12M55G3000/5 is a flagship engine from Baudouin India, engineered for heavy-duty, continuous-service power generation and delivering high torque, robust output, and superior fuel savings across a wide range of operating conditions. Designed as one of the leading low fuel consumption diesel engines in the high-horsepower category, it meets stringent environmental emission benchmarks. It is ideally configured for manufacturing facilities, large greenhouses, and cogeneration projects, prioritizing rugged reliability, operational flexibility, and an extended life cycle.

ENGINE DATA

Speed (RPM)1500
Bore x Stroke (mm)180 x 215
Displacement (L)65.65
No. of Cylinders12 – Vee
Compression Ratio16.5:1
Total Lube Oil Capacity (L)560
Injection Pump TypeHPCR
Starting System Voltage24V DC
Dimensions (L x B x H) mm2958 x 1544 x 2616
Weight (kg)9550
