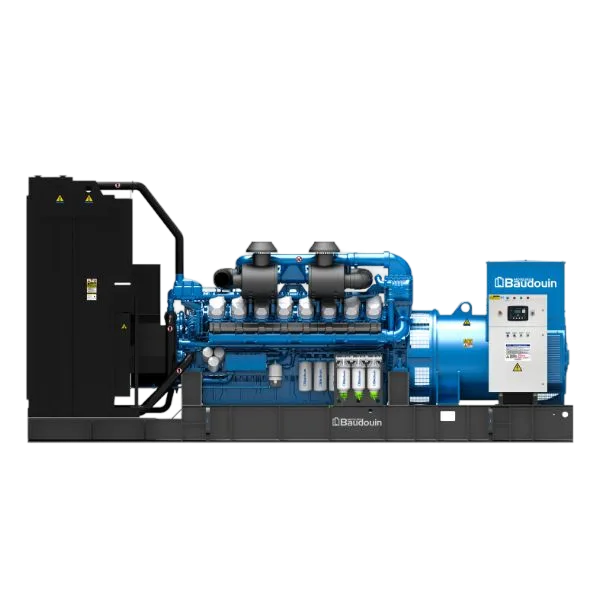

Engine View 1

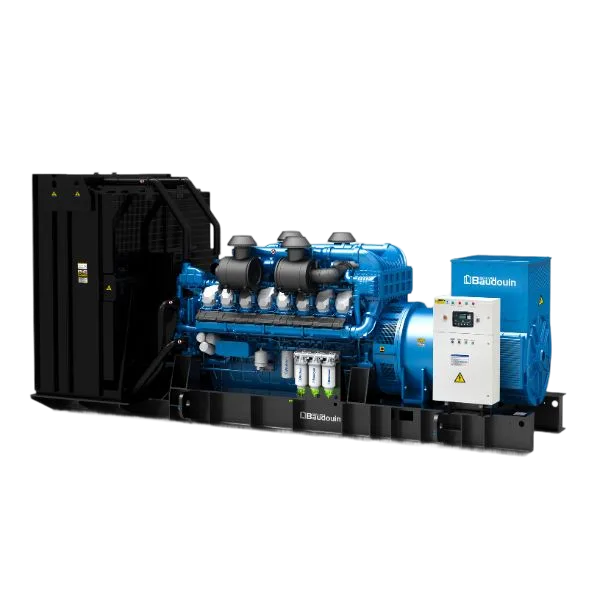

Engine View 2

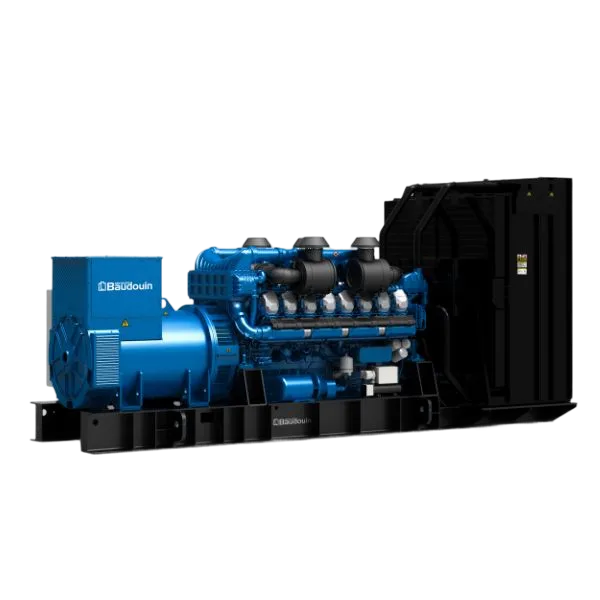

Engine View 3
Engine View 4

16M33G2000/5

The 16M33G2000/5 stands among the best low fuel consumption diesel engines in its class, engineered for heavy-duty, continuous-service power generation, delivering high torque and robust output across a wide range of operating conditions. As a high-efficiency dg engine, it meets stringent environmental emission benchmarks. It is ideally configured for manufacturing facilities, large greenhouses, and cogeneration projects, prioritizing rugged reliability, operational flexibility, and an extended life cycle.

ENGINE DATA

Speed (RPM)1500
Bore x Stroke (mm)150 X 185
Displacement (L)52.3
No. of Cylinders16 – Vee
Compression Ratio15:1
Total Lube Oil Capacity (L)175
Injection Pump TypeHPCR
Starting System Voltage24V DC
Dimensions (L x B x H) mm3967 x 2237 x 2485
Weight (kg)6450
