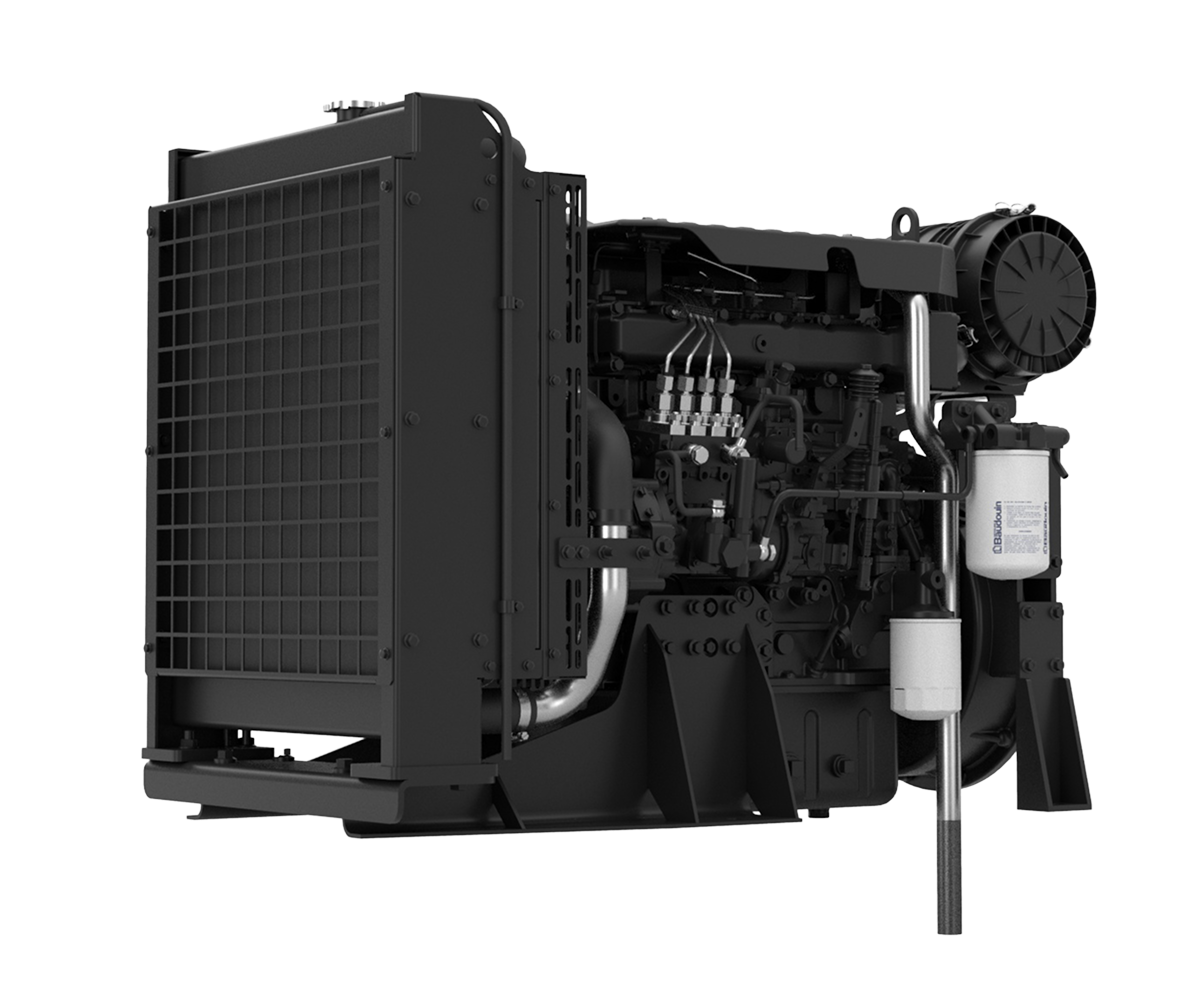

Engine View 2

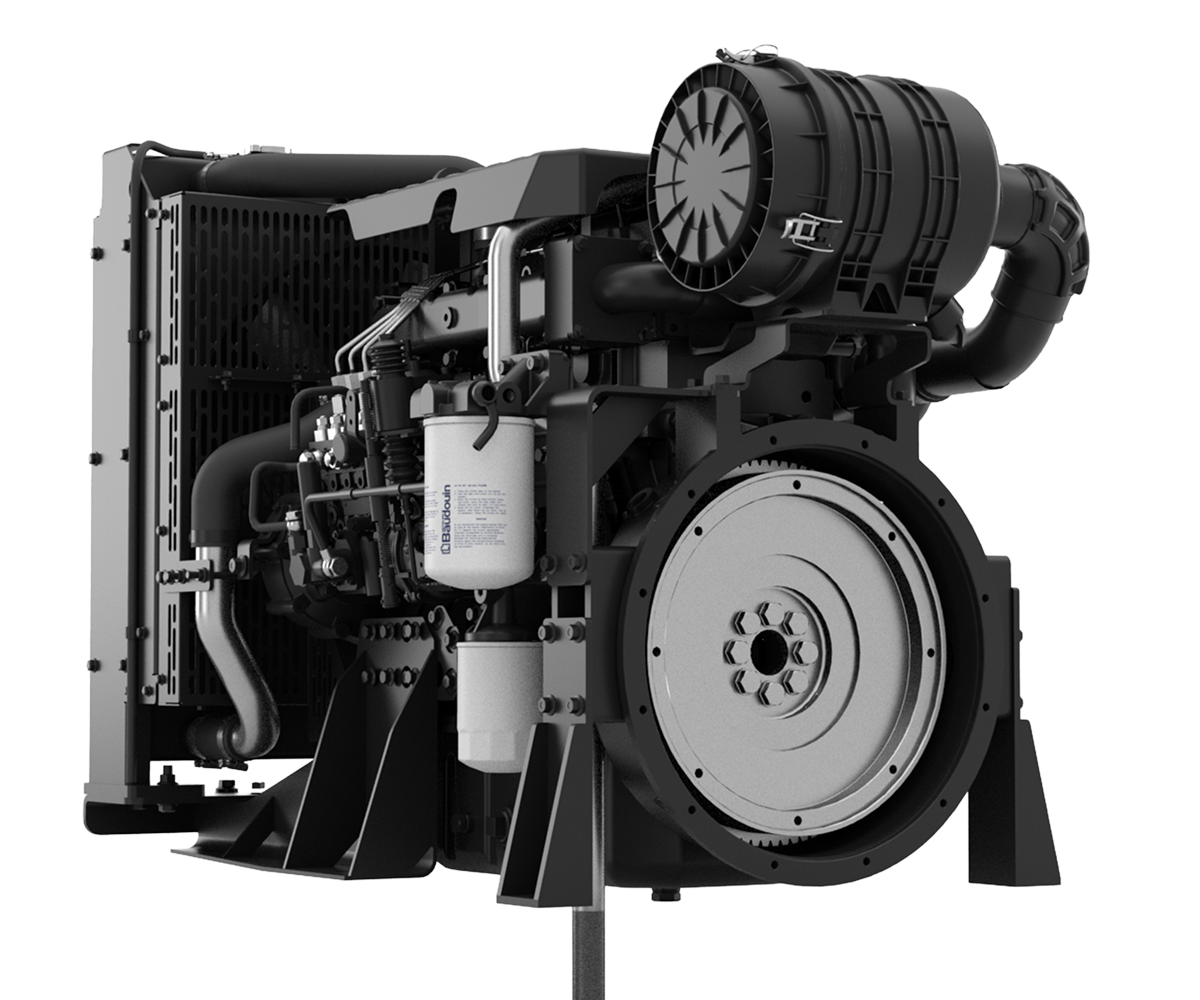

Engine View 3
Engine View 4

4M10-175 Diesel Engine for Air Compressors

The 4M10-175 is a high-performance industrial engine, meticulously engineered to provide exceptional power density for the most demanding rig and compressor applications. With reduced vibration, it ensures smooth operation under fluctuating loads. Built for rugged environments, this engine combines European engineering excellence with superior fuel economy for long-term operational success.

ENGINE DATA

Speed (RPM)2200
No. of cylinders4
Displacement (L)4.1
Rated Power (kW)129
Max. Torque (N.m/rpm)680/1400-1600
Oil Pan capacity (L)12.5
Injection pump typeHPCR
Dimensions (LxBxH) (mm)892 x 683 x 873
Engine dry weight400
Voltage DC (V)24
