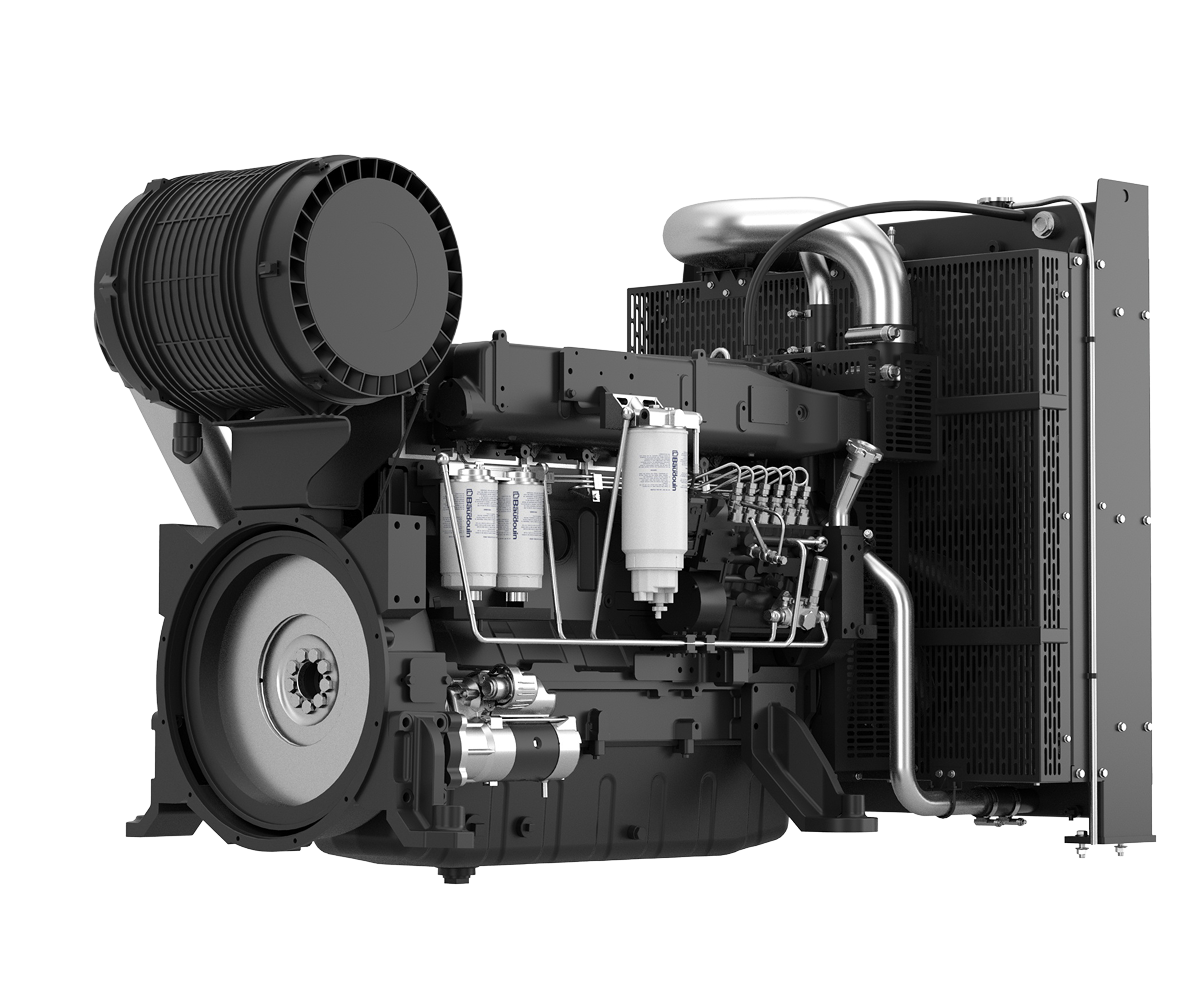

Engine View 2

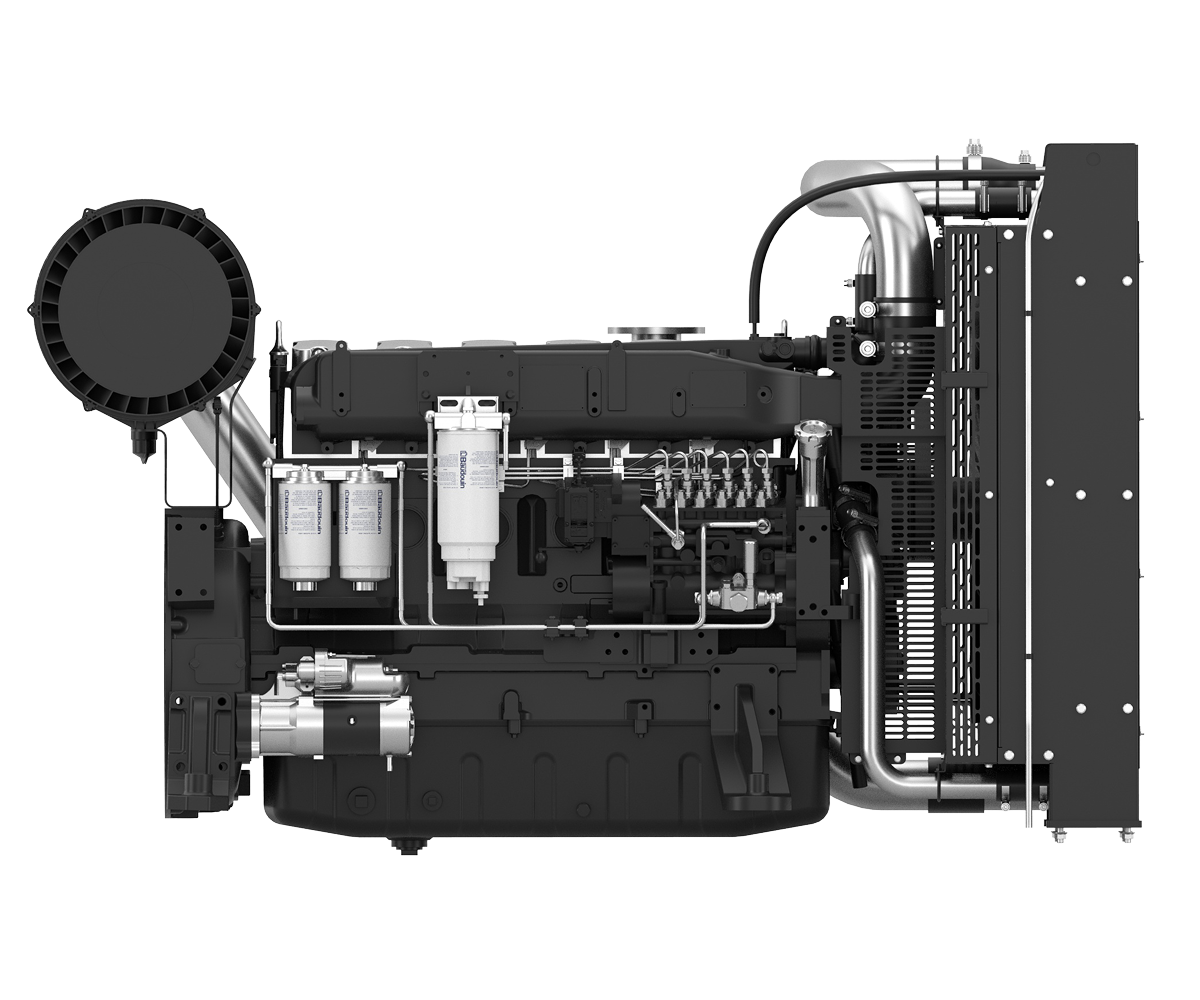

Engine View 3

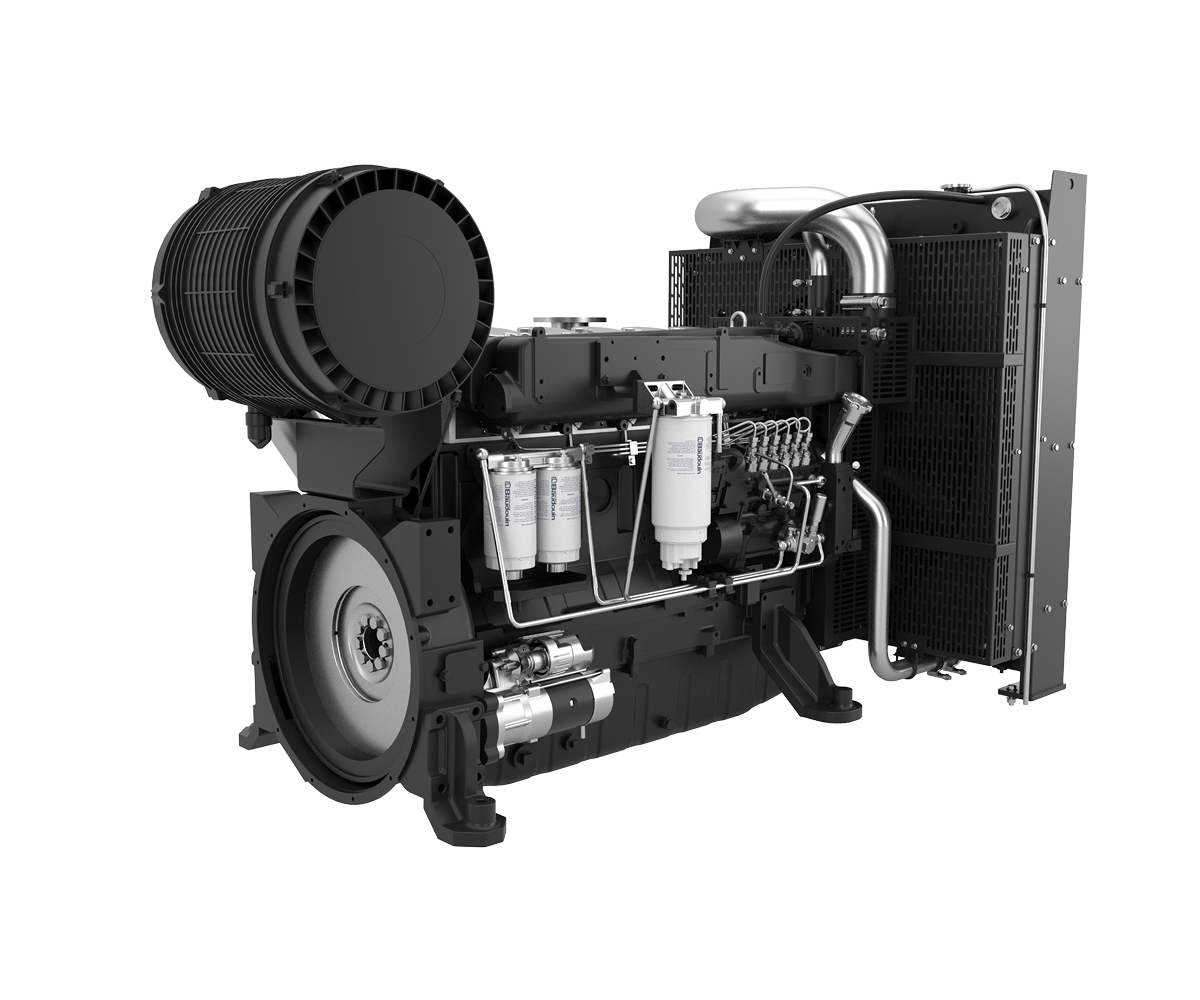

Engine View 4

6M16V2D0 Diesel Engine for Air Compressors

The Baudouin 6M16V2D0 engine is a heavy-duty powerhouse, specifically engineered to provide unrelenting strength for high-capacity industrial operations. Designed for extreme durability and peak efficiency, it ensures consistent performance in the most technically demanding mining and rig environments. This robust engine offers superior reliability and maximum uptime, delivering a highly cost-effective power solution for large-scale projects.

ENGINE DATA

Speed (RPM)2200
No. of cylinders6
Displacement (L)9.7
Rated Power (kW)255
Max. Torque (N.m/rpm)1467/1400
Oil Pan capacity (L)24
Injection pump typeMechanical
Dimensions (LxBxH) (mm)1525 x 730 x 1063
Engine dry weight750
Voltage DC (V)24
