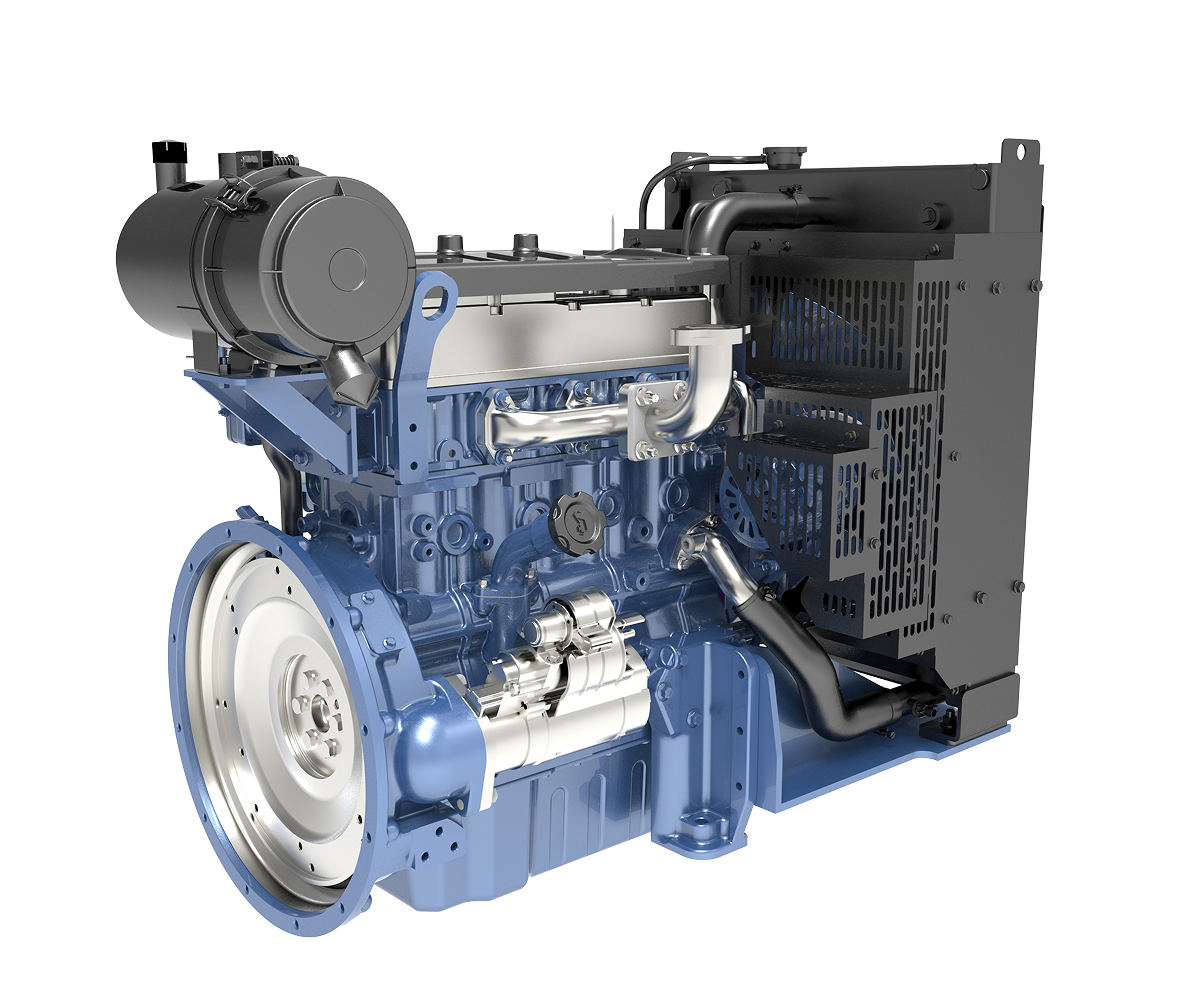

Engine View 3

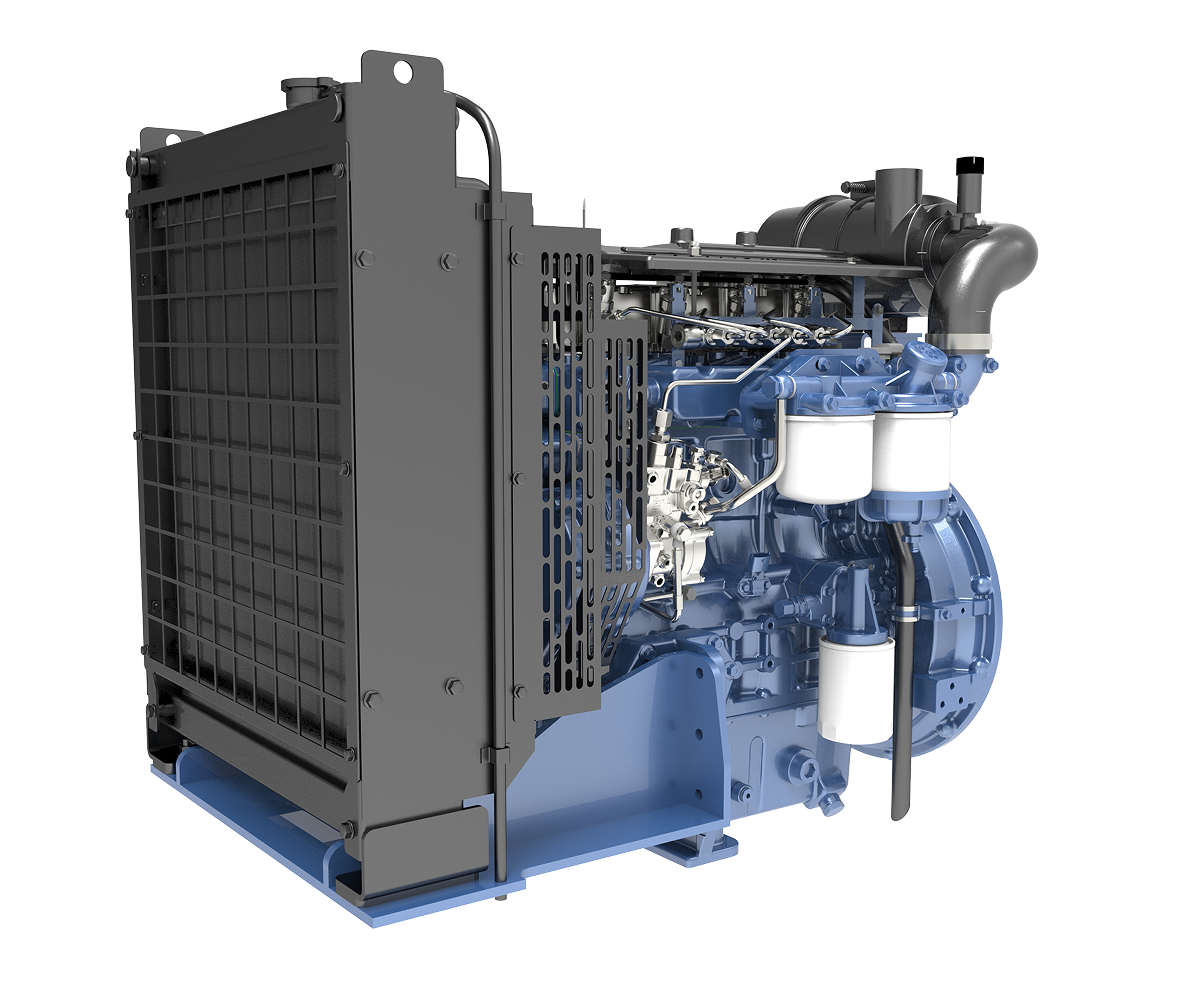

Engine View 4

Baudouin 4M08–60 Diesel Engine for Air Compressors and Rigs

The Baudouin 4M08–60 diesel engine is designed for higher power air compression and rig applications where reliability, durability, and fuel efficiency are critical. The advanced high-pressure common rail system enhances combustion efficiency, improves fuel economy, and ensures low vibration levels even under fluctuating loads. Backed by over a century of engineering legacy, the 4M08–60 offers dependable performance, reduced operating costs, and long service life for compressor and rig manufacturers worldwide.

ENGINE DATA

No. of Cylinders4
Displacement3.2 L
Rated Power45 kW
Rated Speed2500 RPM
Max Torque / Speed210 Nm @ 1400–1700 RPM
Oil Pan Capacity9 L
Injection TypeHPCR
Dimensions (L × W × H)841 × 570 × 721.5
Engine Dry Weight325 kg
VoltageDC 12 V
